Long products

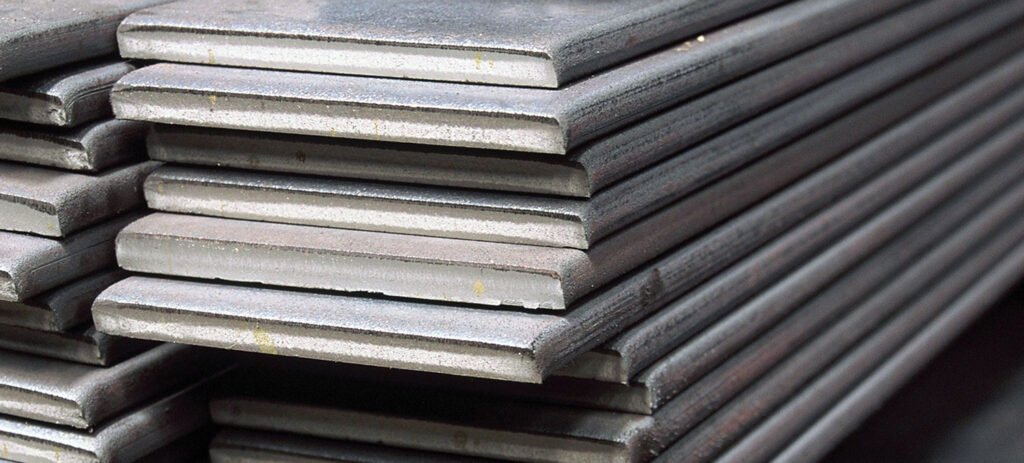

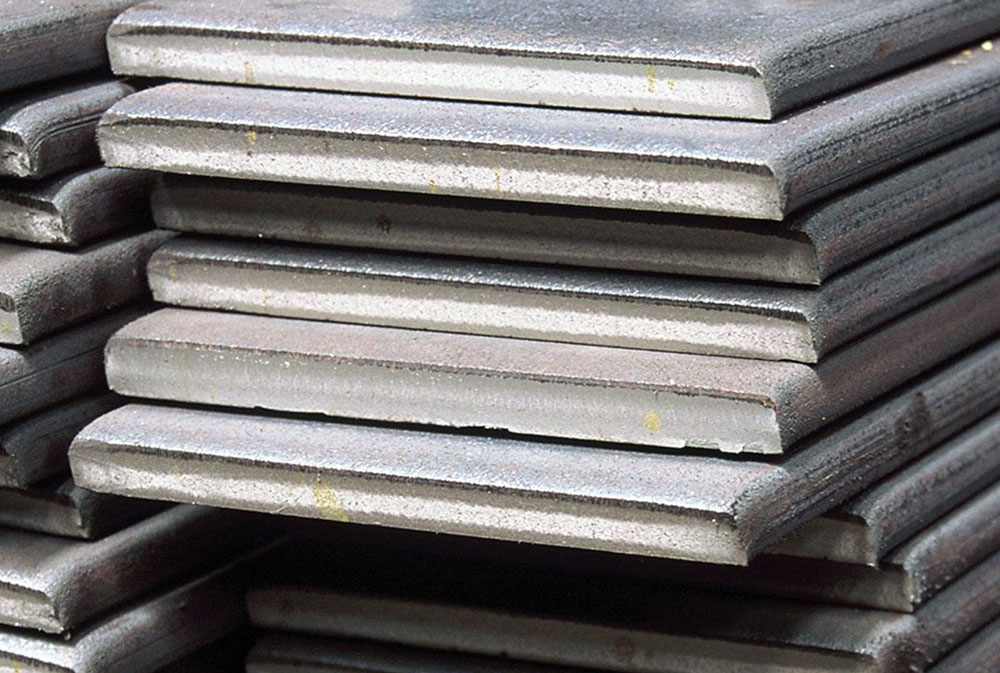

Flat bars

Width mm Tickness - s /mm/
3 4 5 6 8 10 12
Weight kg/m
20 0,47 0,63 0,79 0,94 1,26 1,57 -
25 0,59 0,79 0,98 1,13 1,57 1,96 -
30 0,71 0,94 1,18 1,41 1,88 2,36 2,83
35 0,82 1,1 1,37 1,65 2,2 2,75 3,3
40 0,94 1,26 1,57 1,88 2,51 3,14 3,77
50 1,18 1,57 1,96 2,39 3,14 3,93 4,71
60 1,41 1,88 2,36 2,83 3,77 4,71 5,65
70 1,65 2,2 2,75 3,3 4,4 5,5 6,59
80 1,88 2,51 3,14 3,77 5,02 6,28 7,54
90 2,12 2,83 3,53 4,24 5,65 7,07 8,48
100 2,36 3,14 3,93 4,71 6,28 7,85 9,42
120 - - - - 7,54 9,42 11,3
140 - - - - 8,79 11 13,2
150 - - - - 9,42 11,8 14,1
160 - - - - 10,2 12,8 15,4
180 - - - - 14,4 17,3
200 - - - - 12,8 16 19,2
Lenght: 6000 mm
Side mm Weight kg/m Side mm Weight kg/m
8 0.52 25 4.91
10 0.79 30 7.07
12 1.13 40 12.6
14 1.54 50 19.6
16 2.01 60 28.3
18 2.54 70 38.5
20 3.14 80 50.2
Lenght: 6000 mm

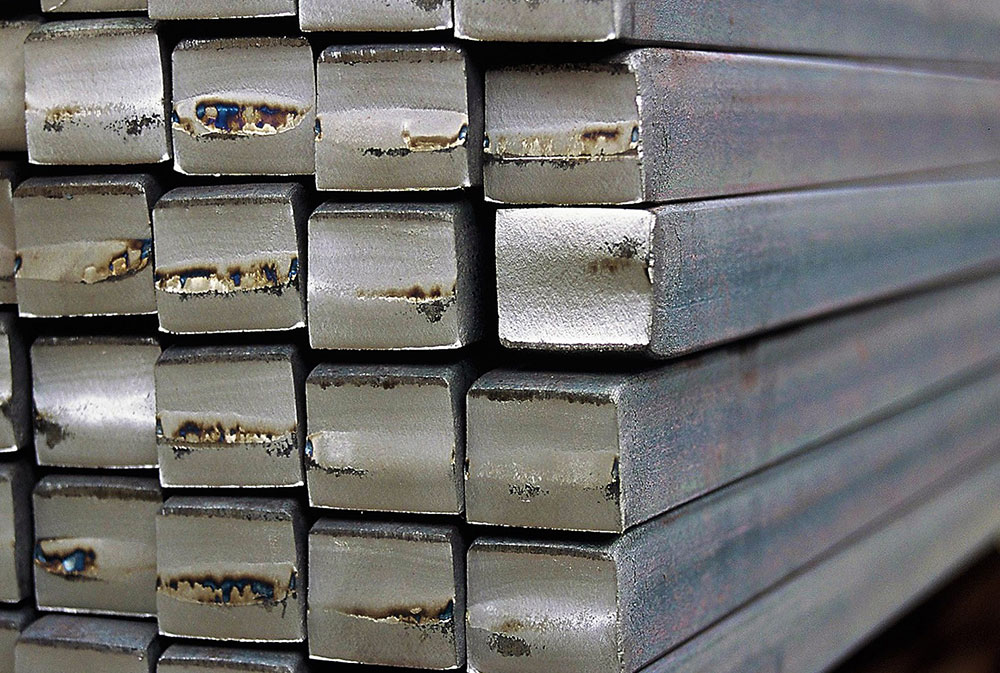

Square bars

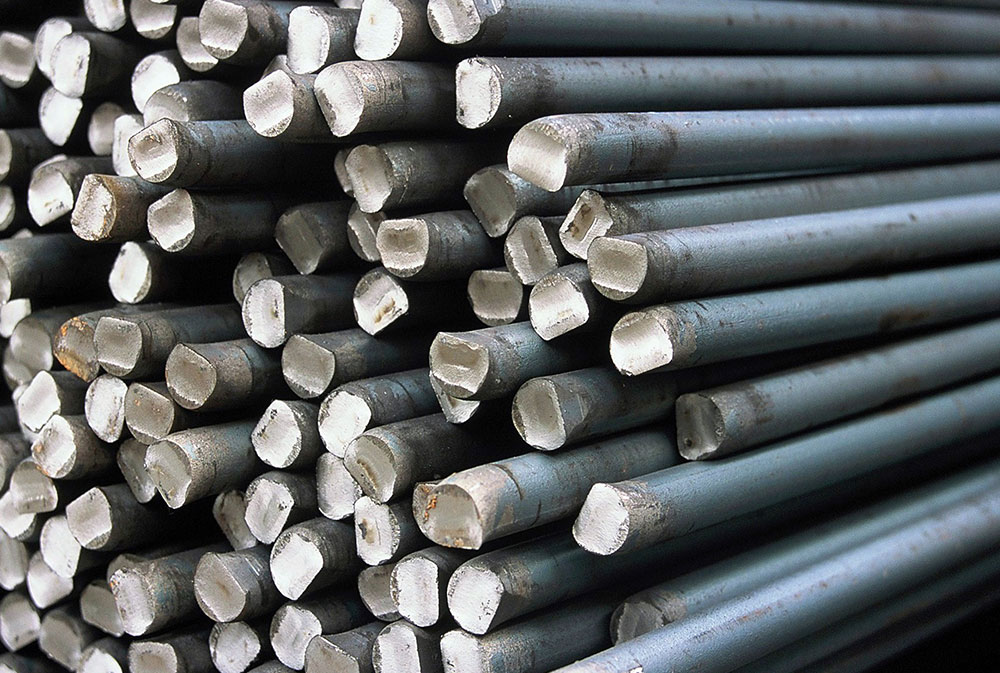

Round bars

Diameter mm Weight kg/m Diameter mm Weight kg/m
8 0.4 30 5.55
10 0.62 35 7.55
12 0.89 40 9.86
14 1.21 50 15.4
15 1.39 60 22.2
16 1.58 70 30.2
20 2.47 80 39.5
Lenght: 6000 mm
