Hot rolled and hot-dip galvanized products
Hot Rolled steel
| Thickness(mm) | Sheets sizes (mm) | ||||
|---|---|---|---|---|---|
| 1000/2000 | 1250/2500 | 1250/4000 | 1250/6000 | 1500/6000 | |
| Weight per sheet (kg) | |||||
| 1.5 | 23.55 | 36.8 | 37.8 | - | - |
| 2 | 31.4 | 49.06 | 78.5 | - | - |
| 2.5 | 39.25 | 61.33 | 98.13 | - | - |
| 3 | 47.1 | 73.59 | 117.75 | - | - |
| 4 | 62.8 | 98.13 | 157 | 235.5 | 282.6 |
| 5 | 78.5 | 122.66 | 198.4 | 294.38 | 353.25 |
| 6 | 94.2 | 147.19 | 235.04 | 353.25 | 423.9 |
| 8 | 125.6 | 196.25 | 314 | 471 | 565.2 |
| 10 | 157 | 245.32 | 392.52 | 588.75 | 706.5 |
| 12 | 188.4 | 294.38 | 471 | 706.5 | 847.8 |

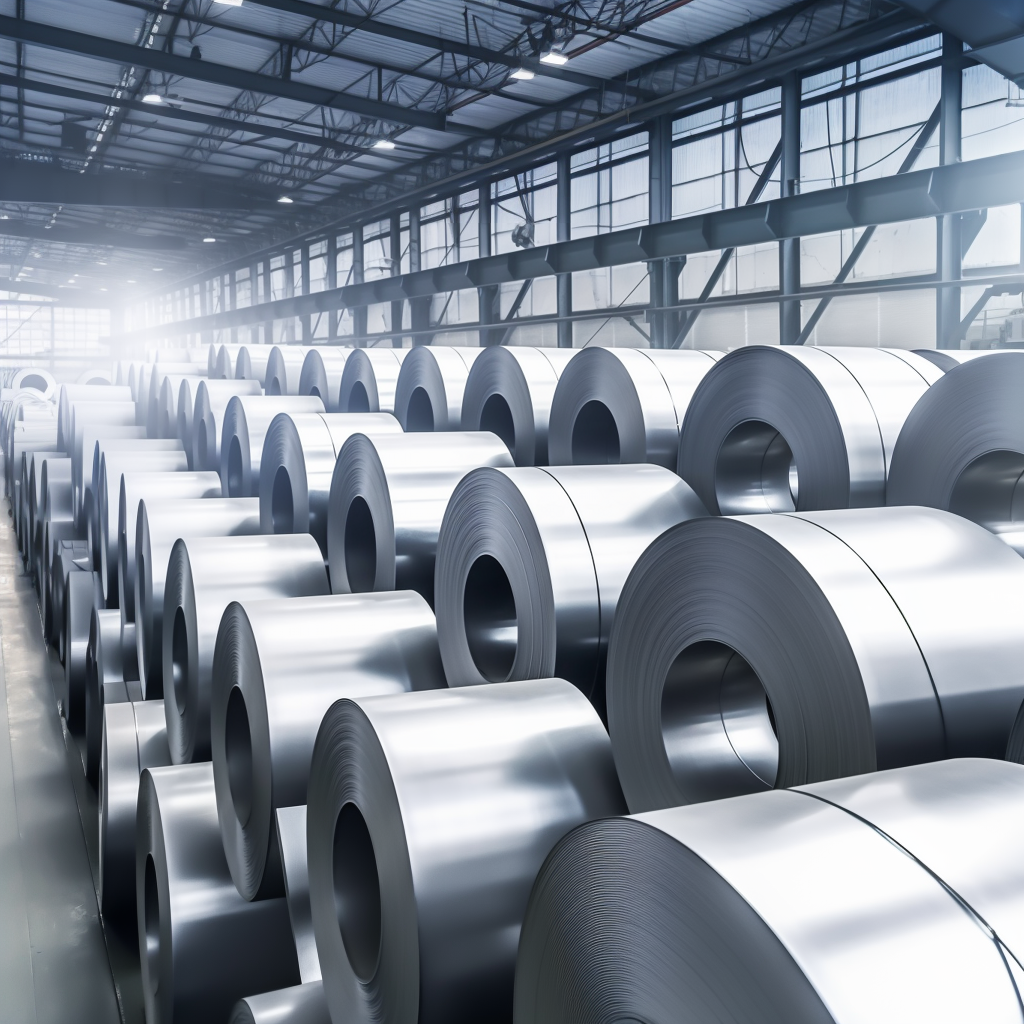

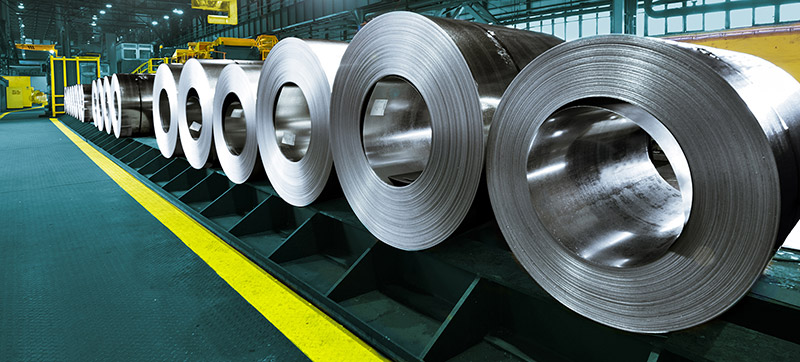

Hot Rolled coils
| Tickness(mm) | Widht of the coils(mm) |
|---|---|
| 1,5 - 12,0 | 1000; 1250; 1500 |
| Inside diameter | 850 mm ± 7 % |
| Outside diameter | 1100 - 1900 mm |
Hot Rolled Heavy plates
| Tickness(mm) | Sheet sizes(mm) | ||
|---|---|---|---|
| 1500/6000 | 2000/6000 | 2000/8000 | |
| Weight per sheet(kg) | |||
| 14 | 989 | 1319 | 1758 |
| 15 | 1060 | 1413 | 1884 |
| 16 | 1130 | 1507 | 2010 |
| 18 | 1272 | 1696 | 2261 |
| 20 | 1413 | 1884 | 2512 |
| 22 | 1554 | 2072 | 2763 |
| 25 | 1766 | 2355 | 3140 |
| 30 | 2120 | 2826 | 3768 |
| 35 | 2473 | 3297 | 4396 |
| 40 | 2826 | 3768 | 5024 |
| 50 | 3533 | 4710 | 6280 |
| 60 | 4239 | 5652 | 7536 |
